ENGINE STORAGE WARRANTY REVALIDATION
To request an engine storage extension, after
expiration of storage warranty terms, please perform the tests required by the
procedure and then confirm the positive result on this tab in the WCL system.

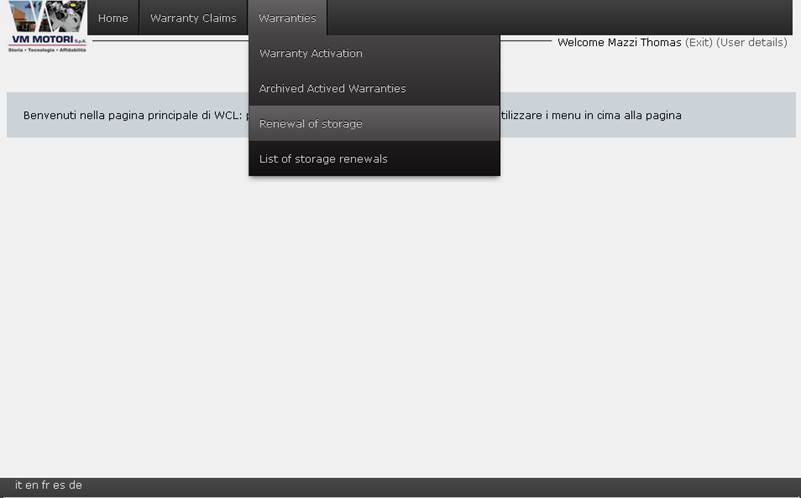

Scroll the menu “Warranties” and select “Storage
warranty revalidation”.
Type in the “serial number” field the VM engine
serial for which the user wish to revalidate the storage warranty period, move

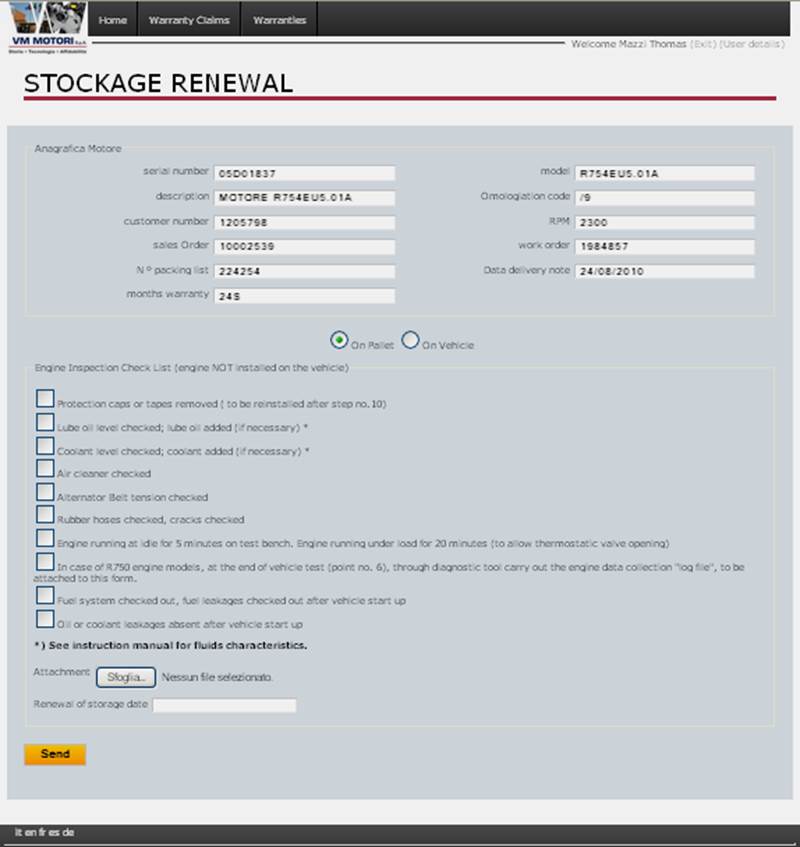

the cursor and click on any other field: the user will see all data identifing the engine as shown in the following example
page.
First select
whether the engine is on a pallet or on the vehicle ,
then proceed with check on each item in the list to confirm the compilation of
all checks performed.
In the event that the engine is a R750 engine, the user must attach the
diagnosis log files requested by the procedure, using the "Browse"
button.
Finally, the user must enter in the dedicated field the date of tests carried
out as requested by the procedure.
Click on the "Send" button. If all data are correct, the revalidation

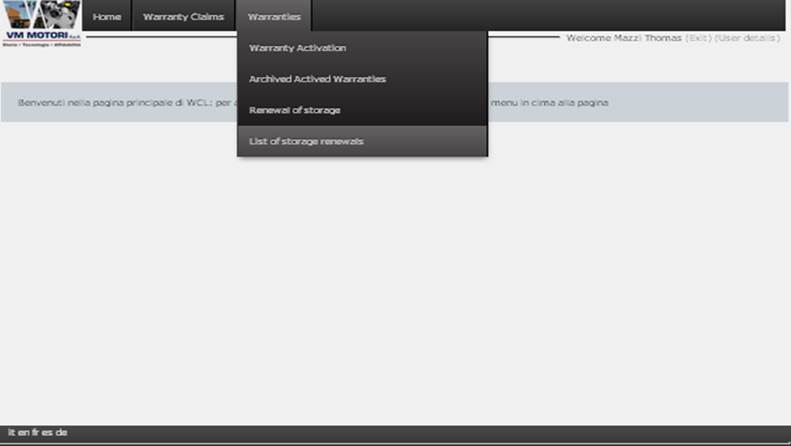

will be recorded and the user can see the data entered from the "List
of storages revalidations".

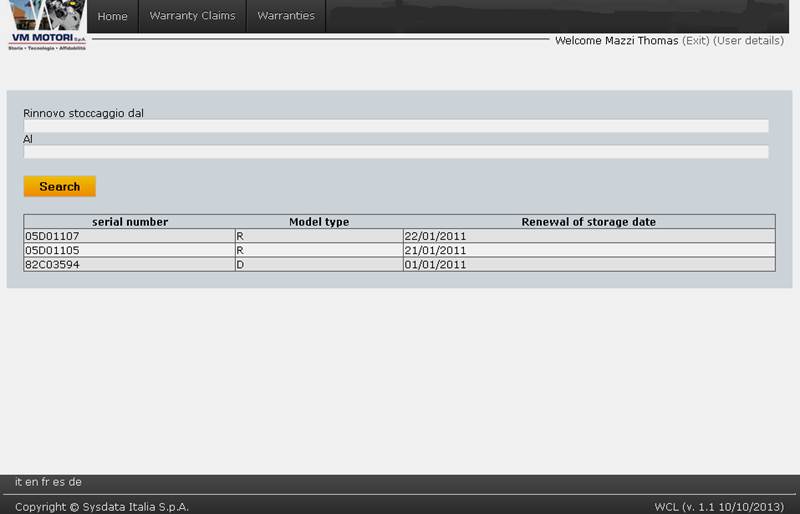

Double-clicking
on the engine serial number, the next page will appear:
